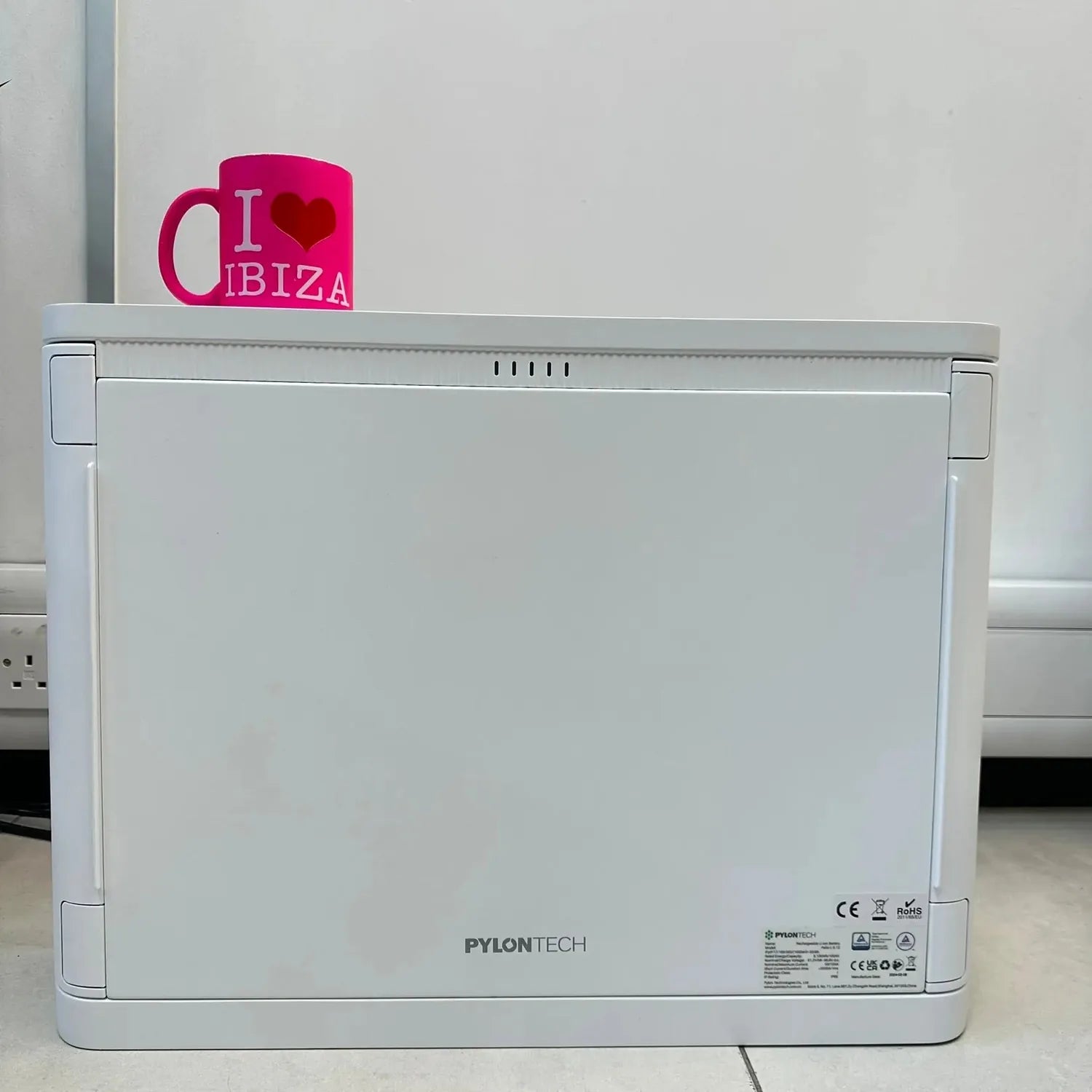

Pylontech Pelio-L 5.12kWh 48V LiFePO4 Battery IP65 | Pelio-L

£1,018.50 £1,207.50
Skip to product information
White rectangular Pylontech Pelio-L lithium battery unit with ribbed top panel and mounting feet, shown against white backgro
Pylontech Pelio-L 5.12kWh 48V LiFePO4 Battery IP65 | Pelio-L

Pylontech Pelio-L 5.12kWh 48V LiFePO4 Battery IP65 | Pelio-L

Vendor
Pylontech
SKU
002524
Availability
Sold out
Weight
47.0 kg

Was£1,207.50£1,006.25Save £189.00Save £157.50

£1,018.50inc VAT £848.75exc VAT

Sorry, this one is sold out

Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.

Delivery from £49.00 to mainland UK Sent on a pallet, booked in with you first. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

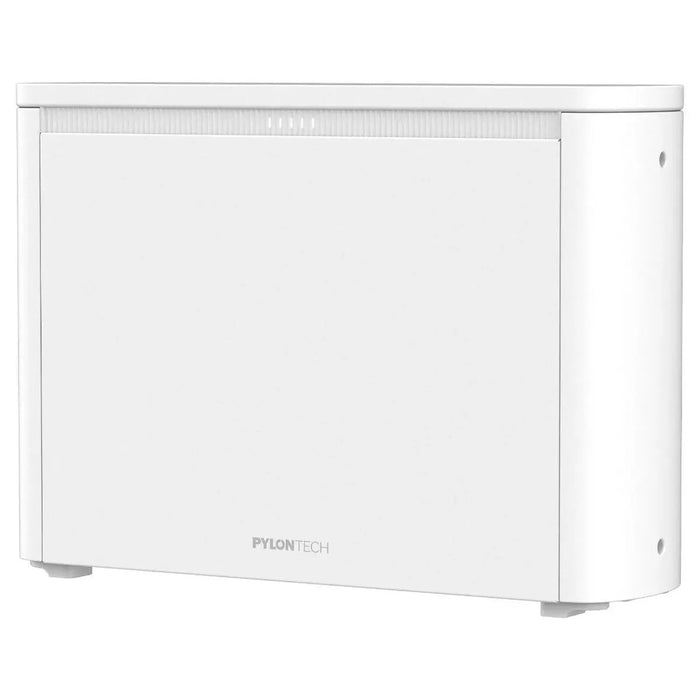

The Pylontech Pelio-L is a 5.12kWh 48V wall-mounted lithium iron phosphate battery with IP65 weatherproof protection and integrated Wi-Fi monitoring. Built with LFP cell technology, it packs its capacity into a compact, lightweight case suitable for indoor or outdoor mounting. The modular design lets you add further Pelio-L units to grow storage capacity as your needs change.

Key features of this 48v lithium battery

  • Capacity, 5.12kWh, 48V LiFePO4

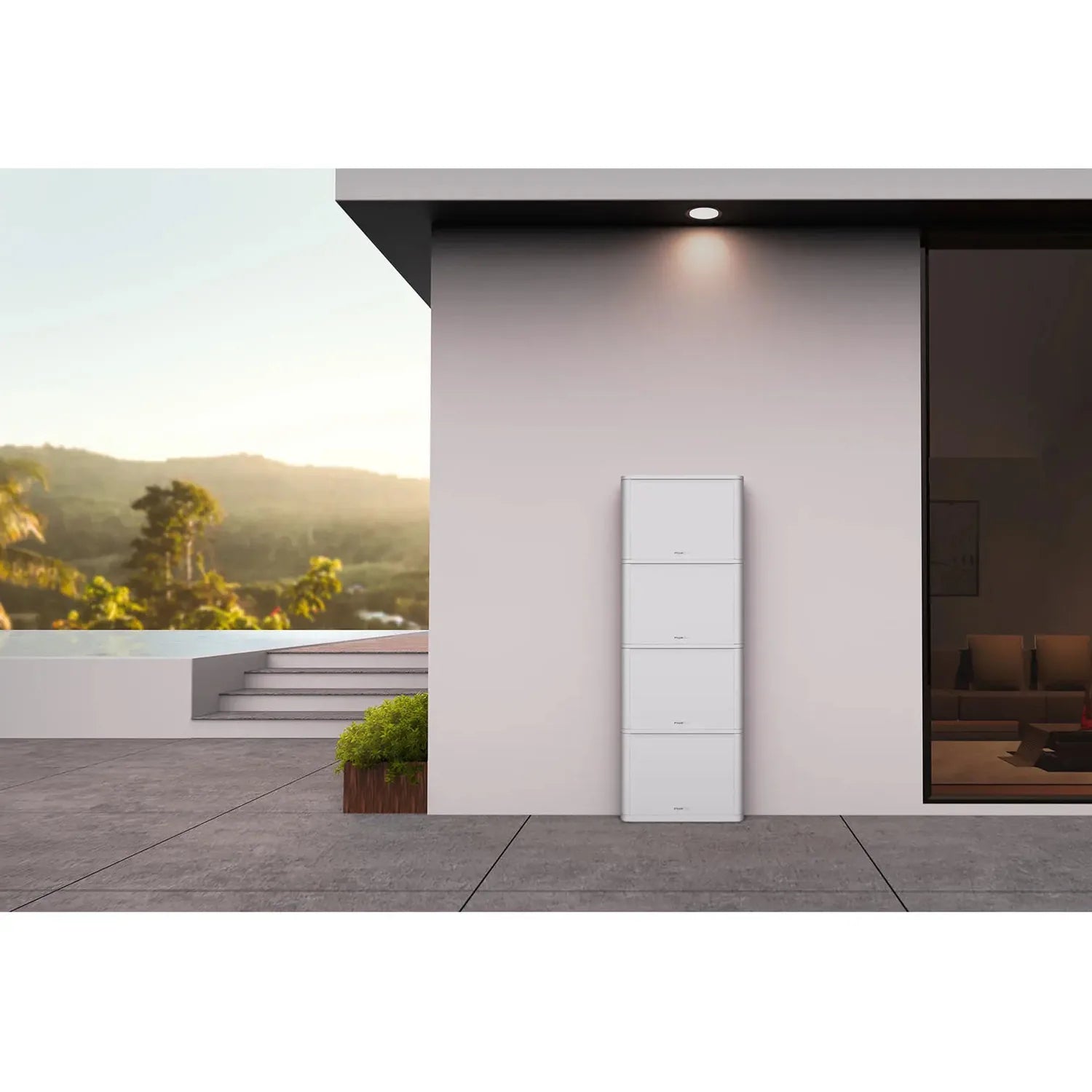

  • Weatherproofing, IP65 rated, suitable for indoor and outdoor installation

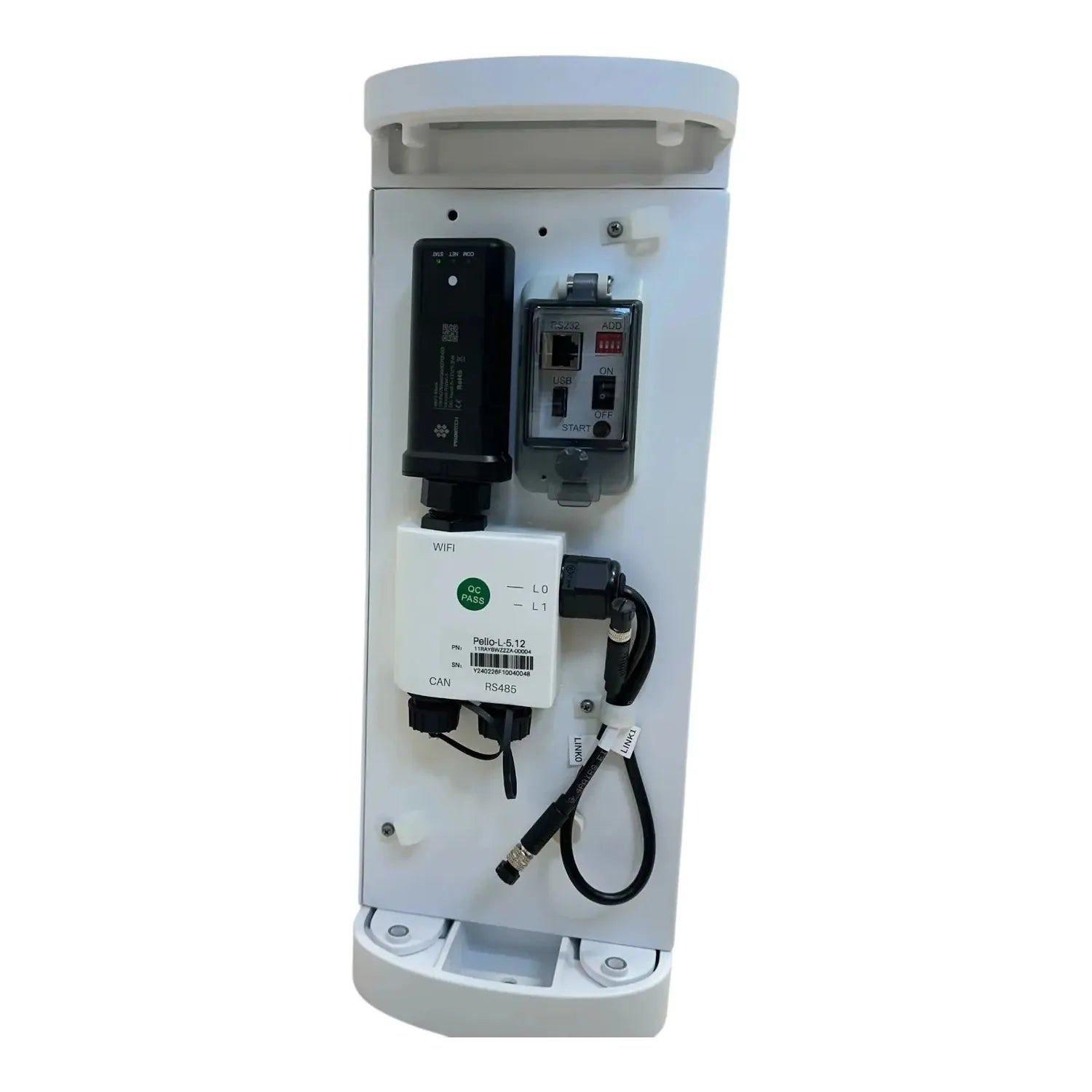

  • Monitoring, integrated Wi-Fi for online monitoring and firmware updates

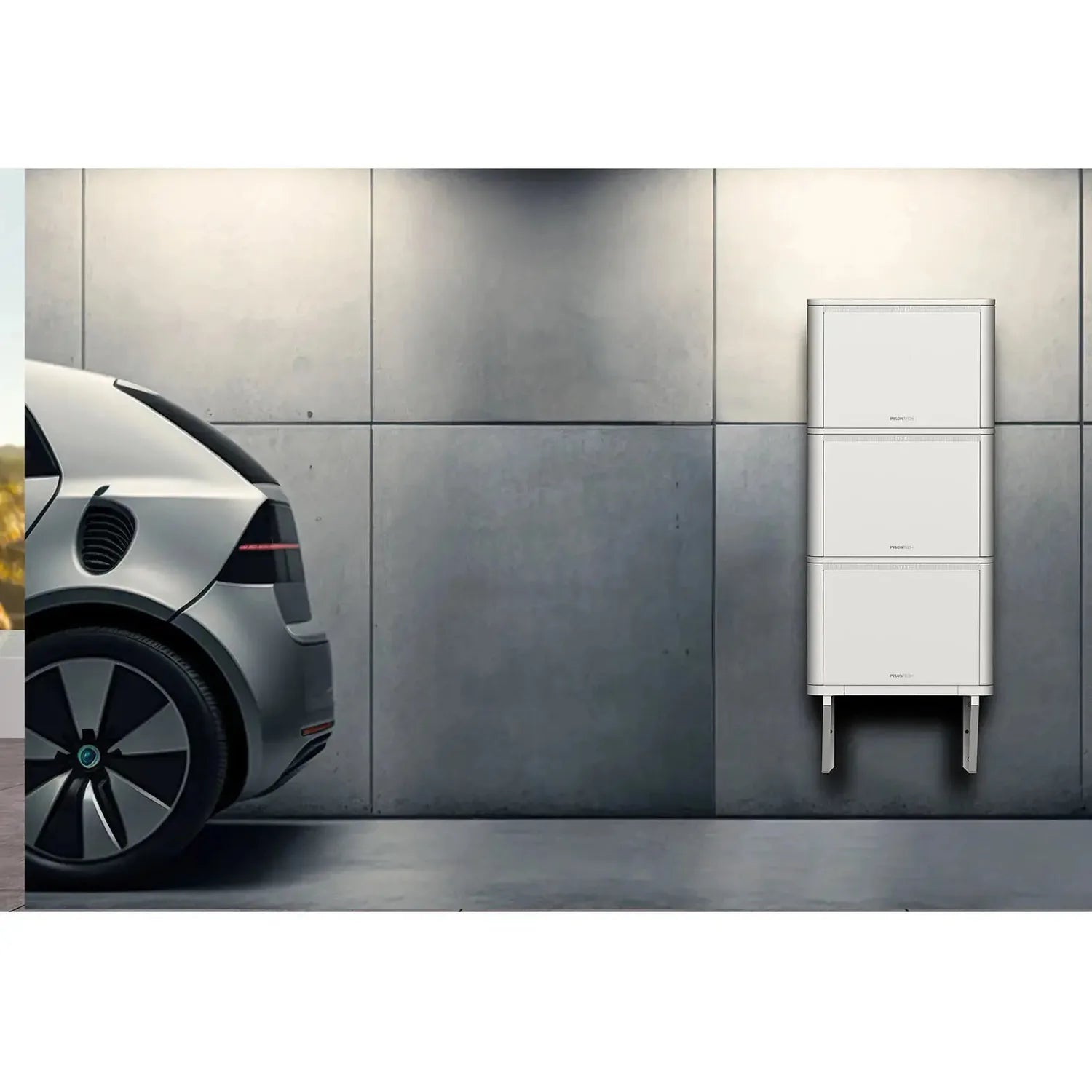

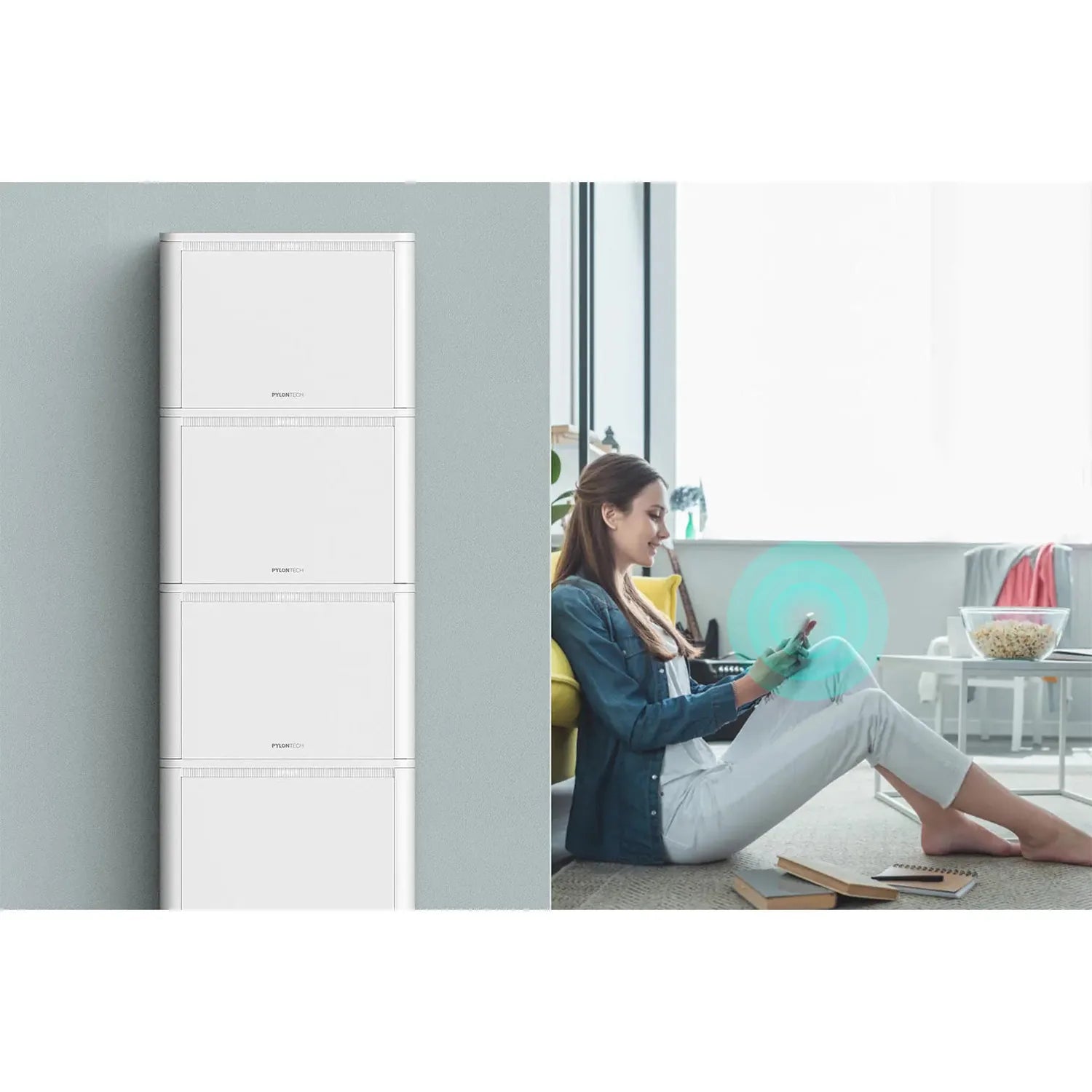

  • Footprint, compact, wall-mounted design

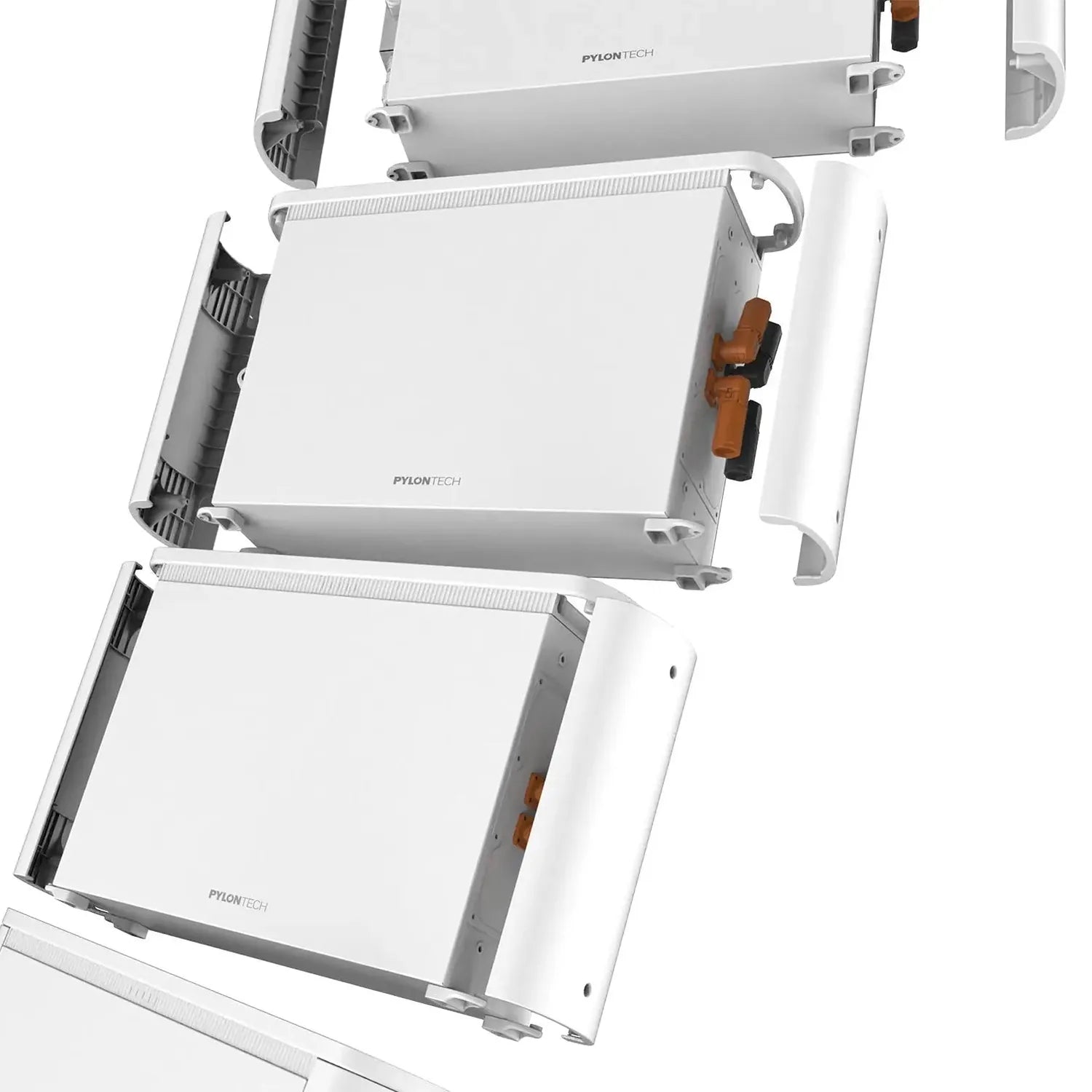

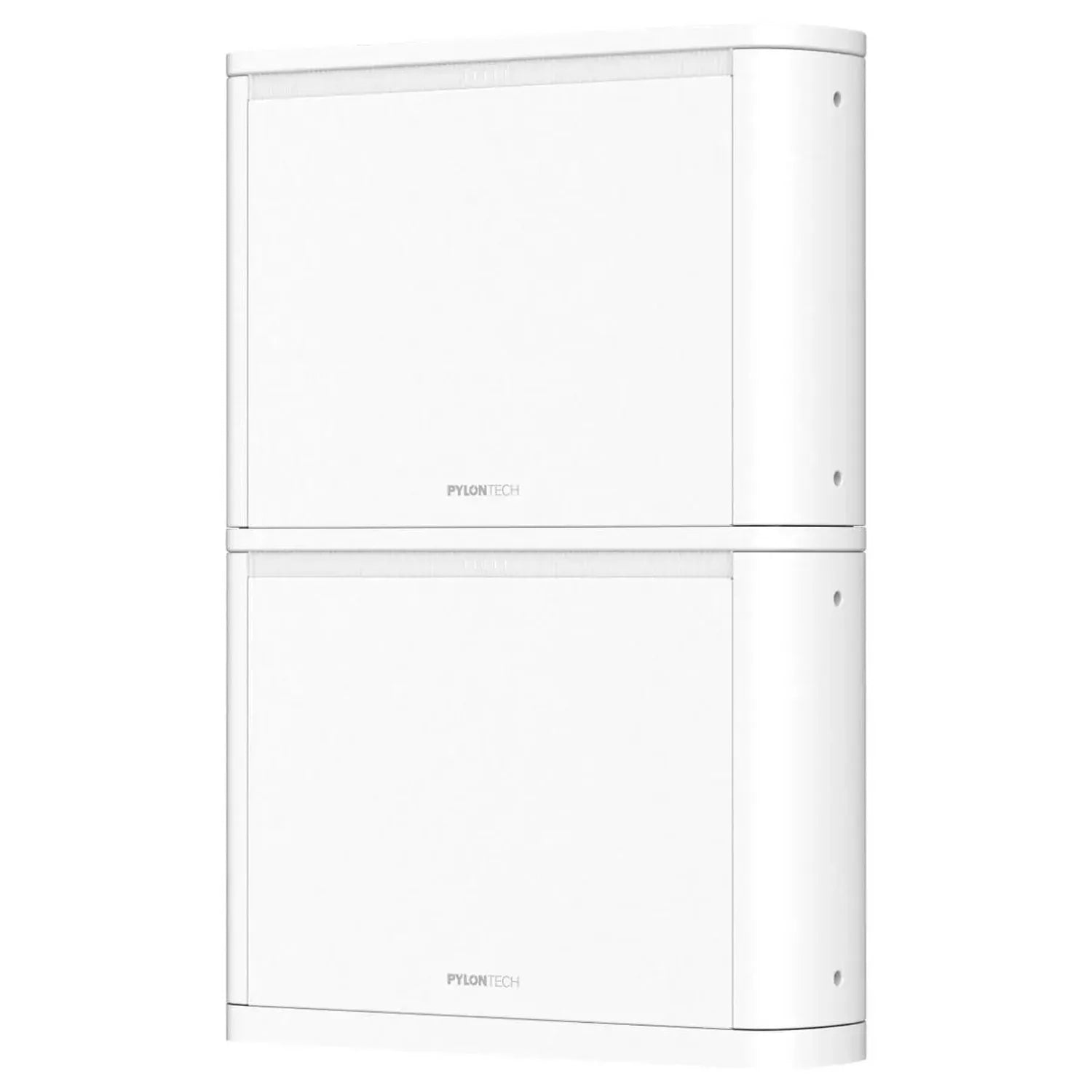

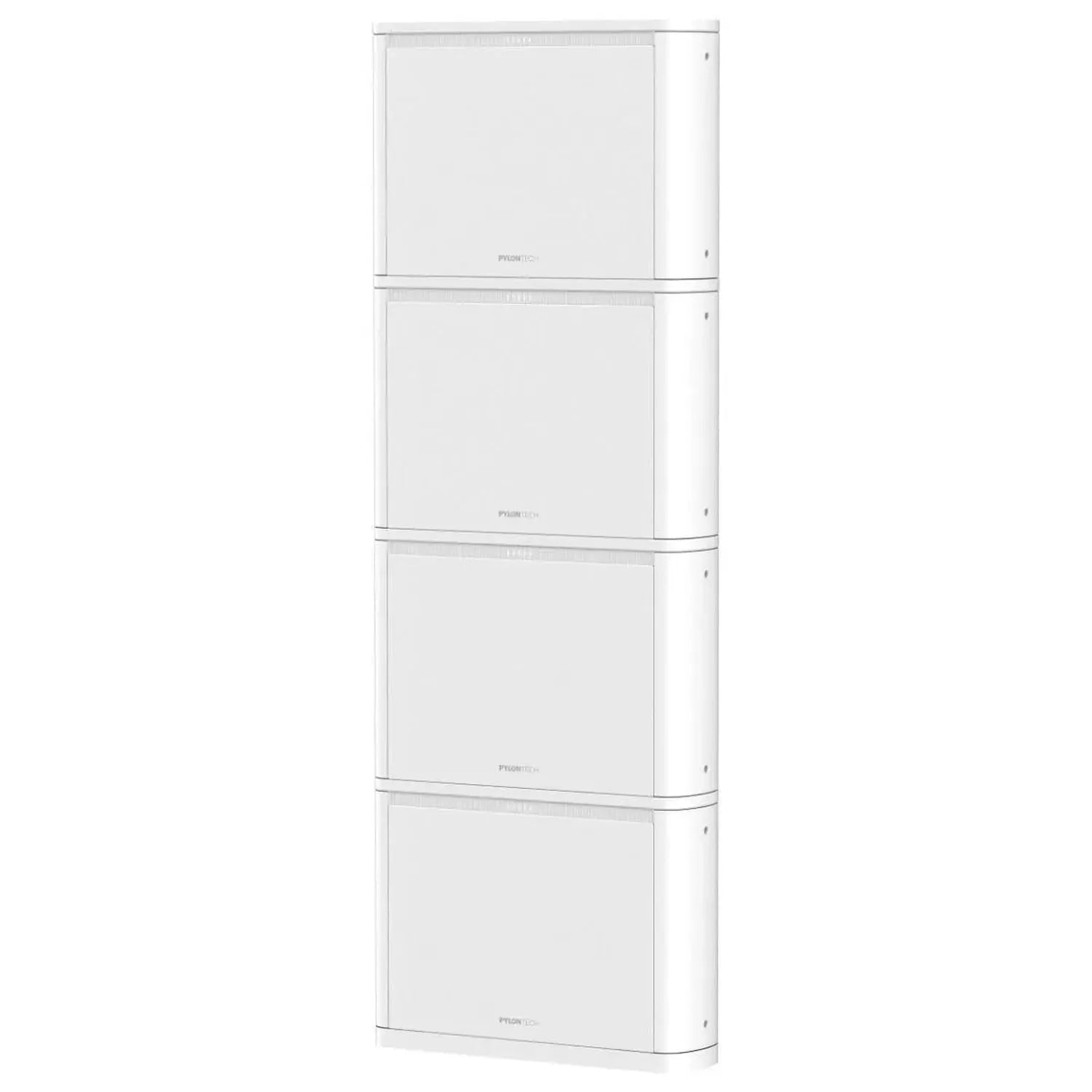

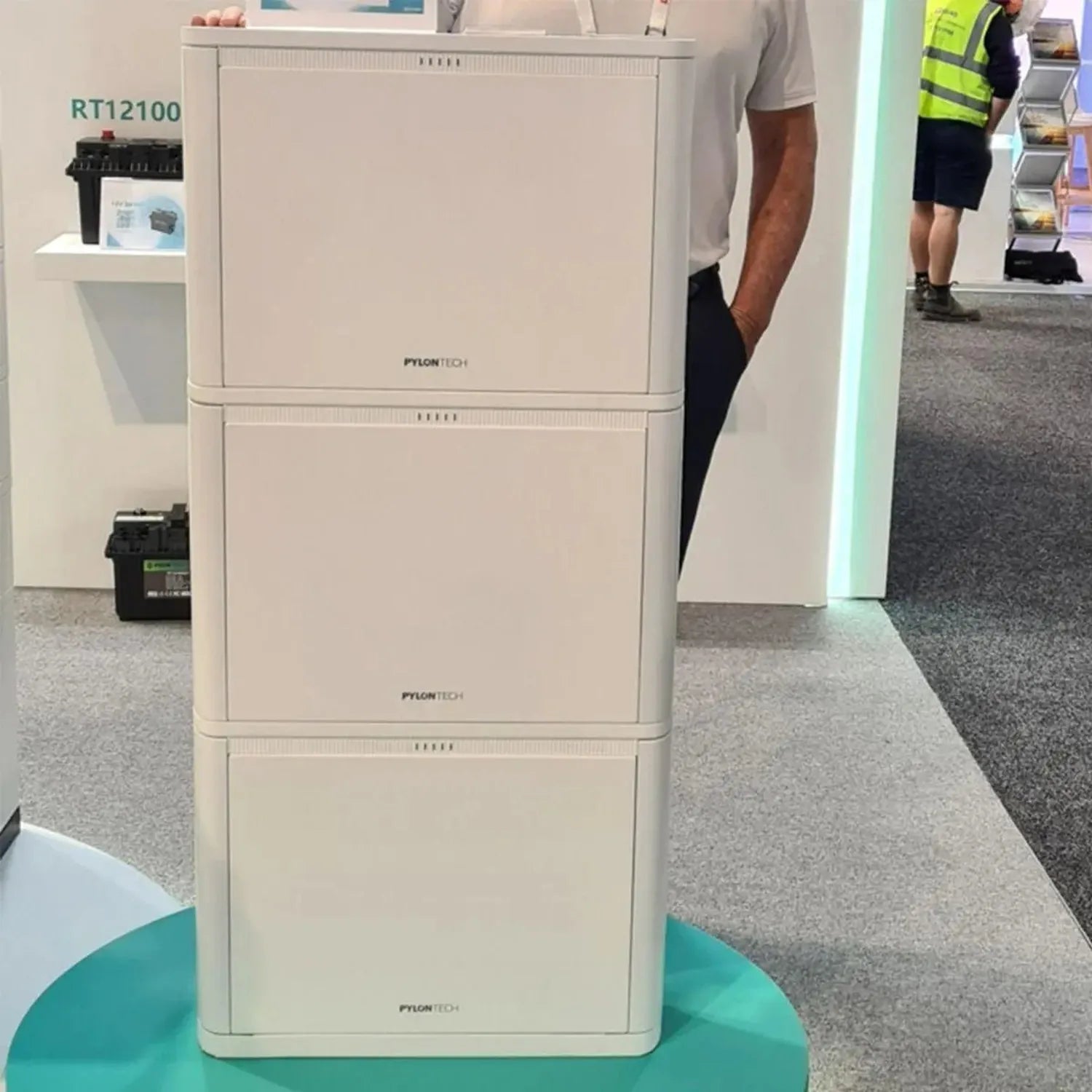

  • Expandable, modular, add further Pelio-L units to increase capacity
  • Cells, latest LFP cell technology for high energy density

Applications

Suited to residential solar energy storage in grid-tied and hybrid systems, and to off-grid battery storage where an outdoor-rated enclosure is needed.

Installation notes

Wall mounting needs a structurally suitable surface, and all electrical connections must be made by a qualified electrician. For outdoor installation in cold climates, the battery's operating temperature range must be observed.

Technical Specifications 18 rows Show
SpecificationDetails
ModelPELIO-L-5.12
Nominal Voltage51.2V
Nominal Capacity5120Wh
Usable Capacity4864Wh (95% DoD)
Dimensions395 x 578 x 165mm
Weight45kg
Discharge Voltage44V ~ 58.4V
Charge Voltage58.4V
Max Charge/Discharge Current50A / 50A
Cell TypeLFP (Lithium Iron Phosphate)
IP RatingIP65 (indoor and outdoor)
Operating Temperature0 to 50°C (charge), -10 to 50°C (discharge)
CommunicationWi-Fi integrated (smartphone app monitoring)
Max Parallel Units16
Depth of Discharge95%
Cycle Life>6000 cycles at 25°C
CertificationsIEC62619, UN38.3, CE

Manufacturer datasheet. Figures as published by the manufacturer.
