All Lithium Ion

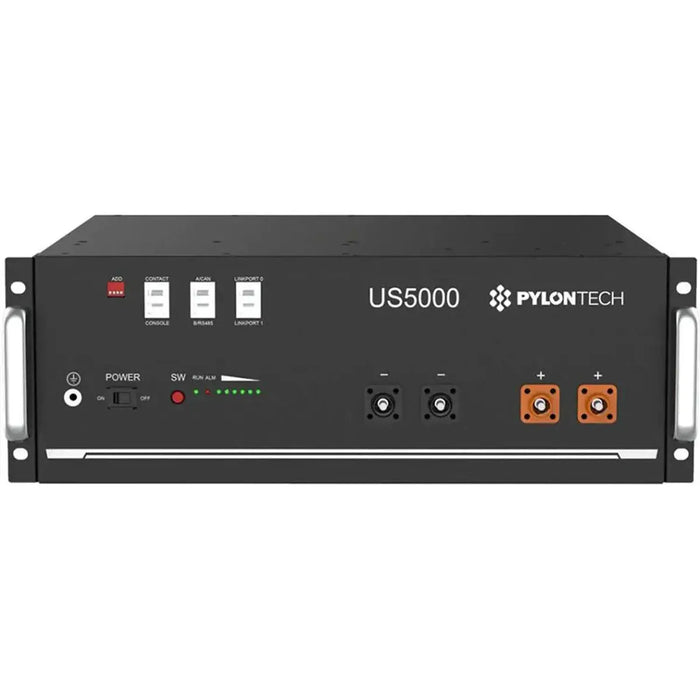

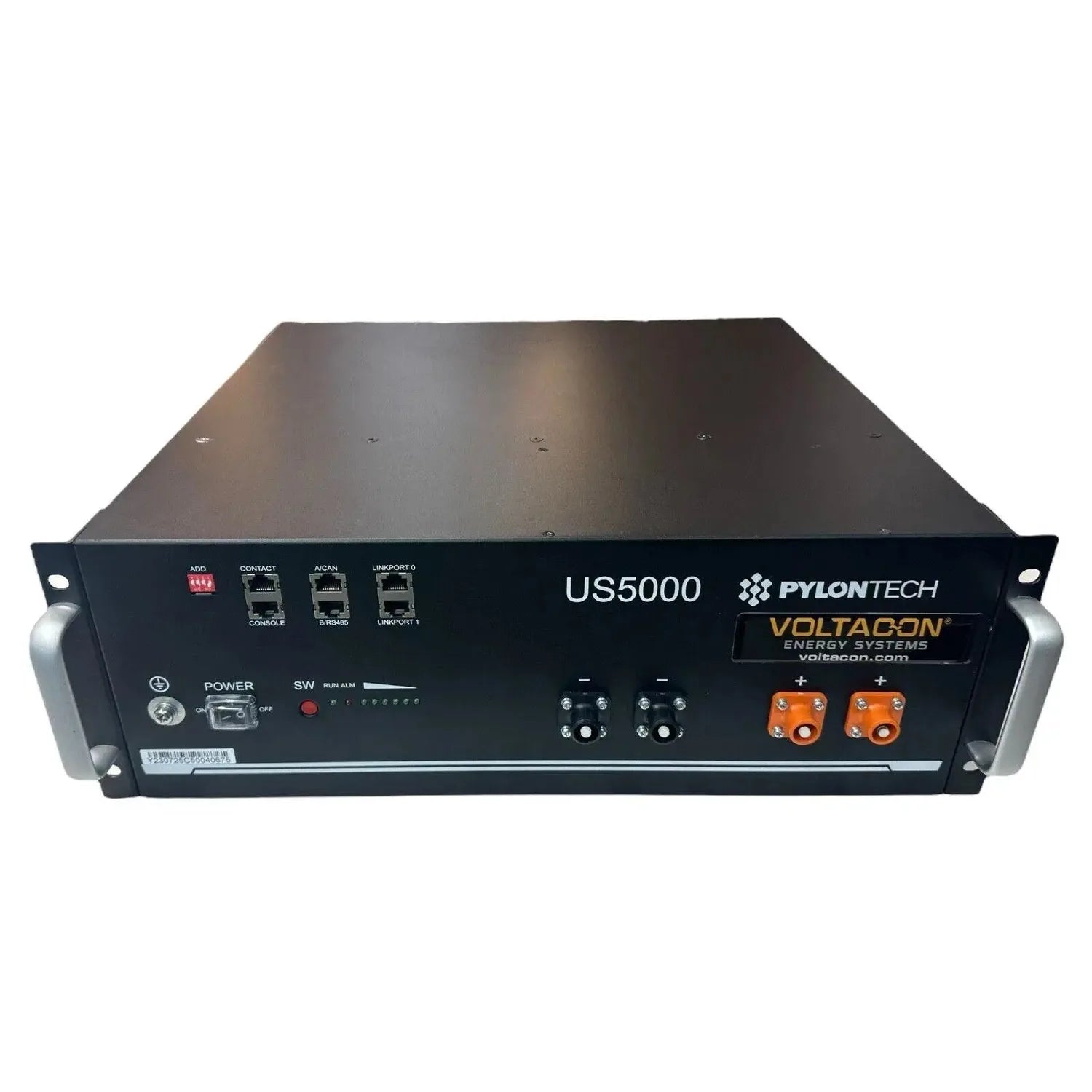

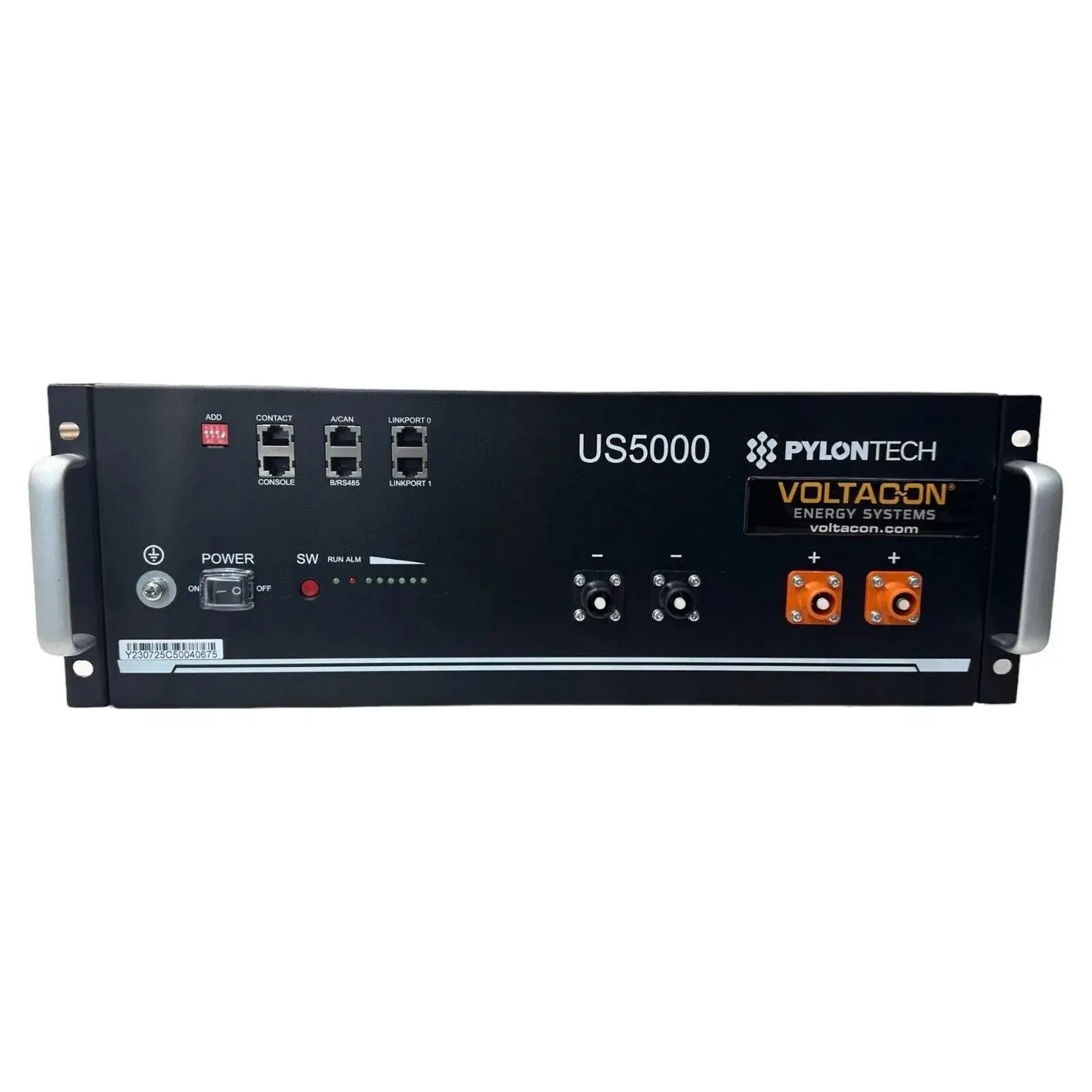

Pylontech US5000 battery unit, front view showing power controls, status indicators, and orange terminal connectors.

Pylontech US5000C Lithium Ion Battery 4.8kWh 48V 100Ah

£829.50
Skip to product information
Pylontech US5000 battery unit, front view showing power controls, status indicators, and orange terminal connectors.

Pylontech US5000C Lithium Ion Battery 4.8kWh 48V 100Ah

Vendor
Pylontech
SKU
US5000
Availability
In stock
Weight
39.0 kg

£829.50inc VAT £691.25exc VAT

Delivery from £49.00 to mainland UK Sent on a pallet, booked in with you first. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Pylontech US5000C is a 4.8kWh 48V 100Ah lithium iron phosphate battery built for residential and commercial solar energy storage. It offers a 95% depth of discharge and an improved C rate over earlier Pylontech models, with up to 100A maximum continuous charge and discharge current. Pylontech recommends 80A for everyday use to balance performance with long-term battery protection.

Key features of the Pylontech US5000 lithium ion battery

  • Capacity, 4.8kWh at 95% depth of discharge
  • Voltage, 48V nominal, 100Ah
  • Chemistry, LiFePO4 (lithium iron phosphate)
  • Current, up to 100A maximum continuous charge/discharge, 80A recommended

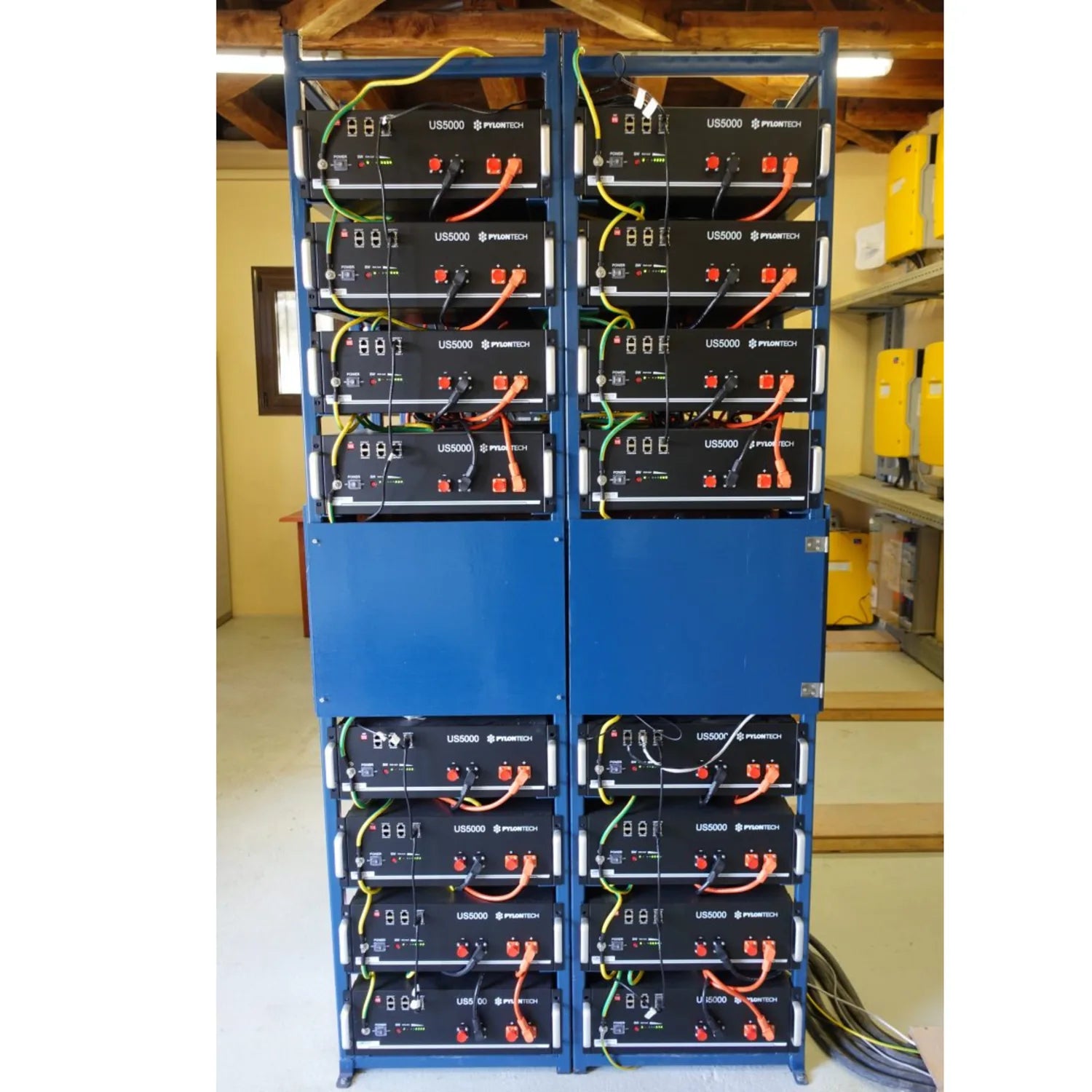

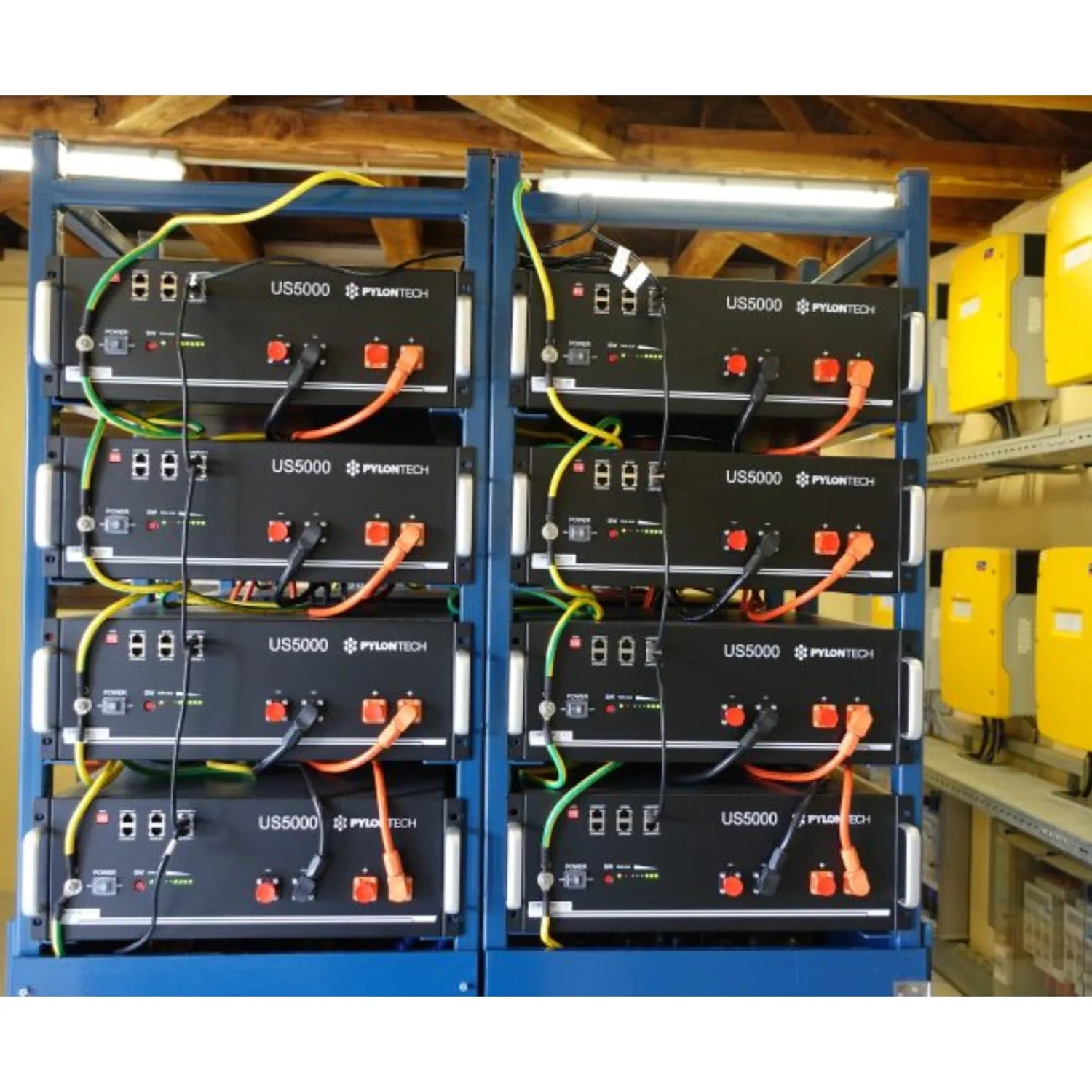

  • Scalability, up to 16 units in parallel, no external hub required
  • Warranty, 10 years

Compatibility

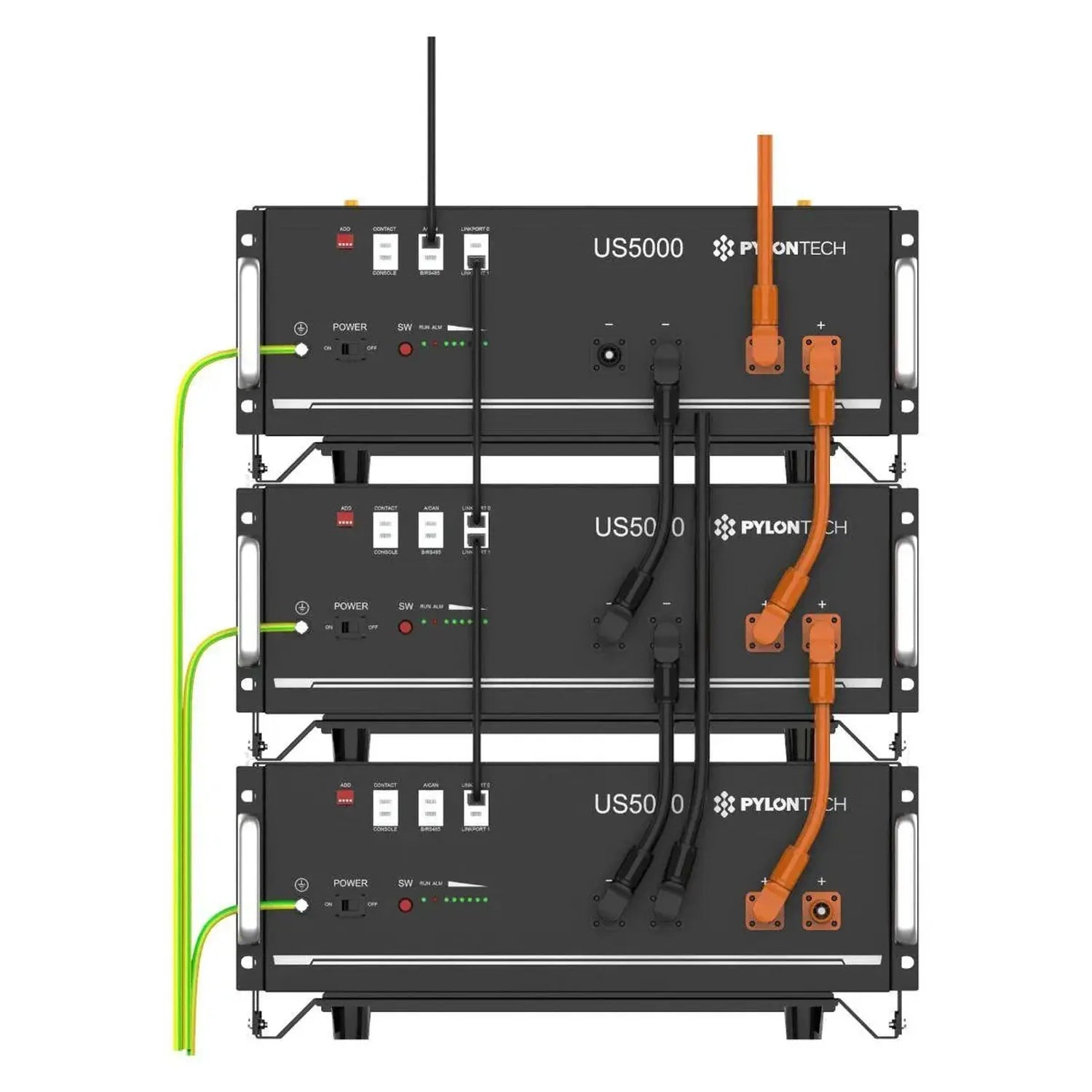

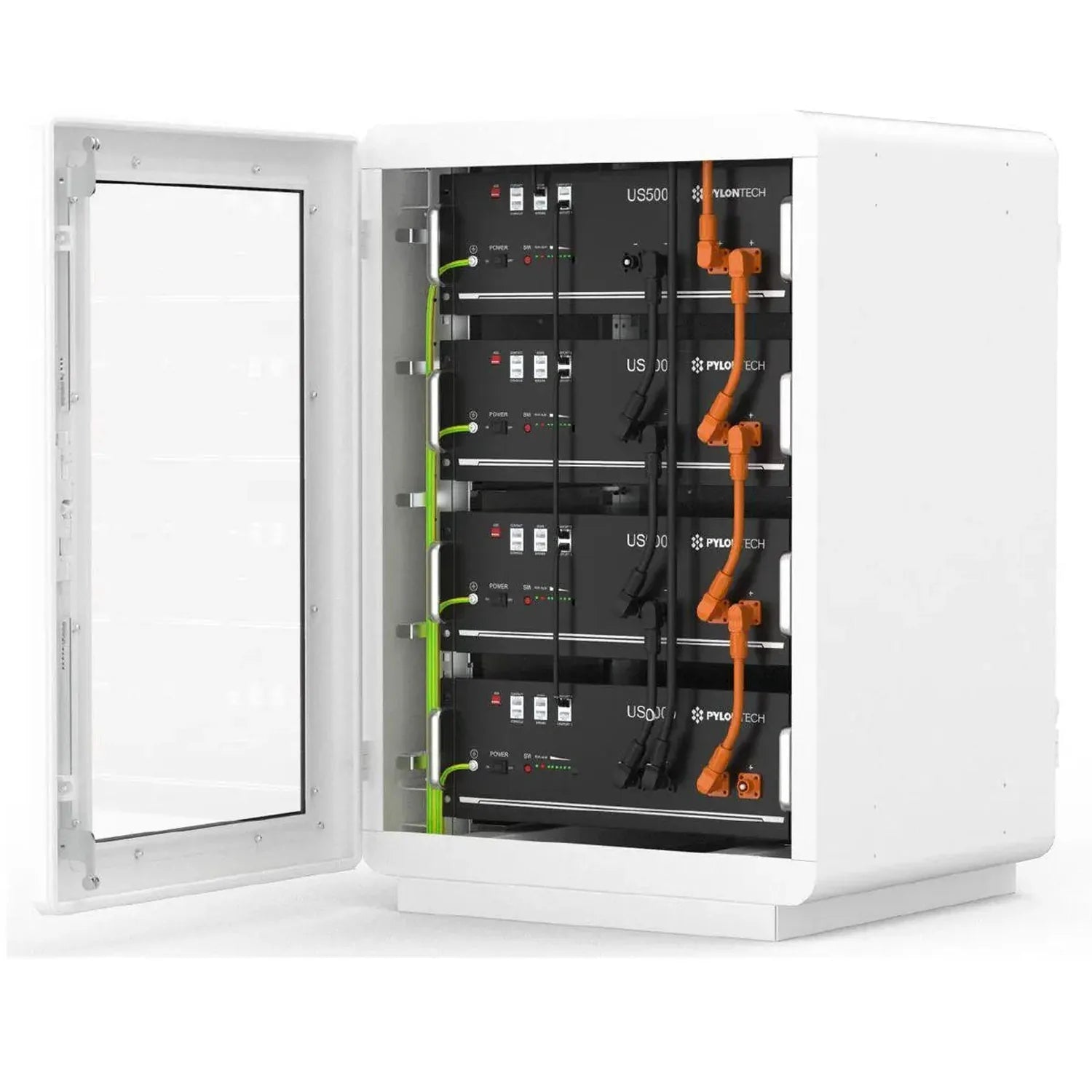

The US5000C communicates with most BMS-enabled hybrid and off-grid inverters, with a built-in Smart BMS that handles cell balancing and prevents overcharge or overdischarge. Units can be stacked using rack systems or mounting brackets, and installation can be vertical or horizontal, indoors or outdoors.

Applications

Suited to residential and commercial solar energy storage, and to hybrid or off-grid inverter battery banks where scalable, stackable capacity is needed.

Installation notes

Connections must be made by a qualified electrician. Check BMS cable compatibility with your specific inverter model before installation.

Technical Specifications 29 rows Show

Pylontech US5000C Lithium Iron Phosphate Battery Specifications

Model US5000C
Battery Technology Lithium Iron Phosphate, LiFePO4
Nominal Voltage 48V DC
Nominal Capacity 4,800Wh
Usable Capacity 4,560Wh
Depth of Discharge 95%
Dimensions 442 x 420 x 161mm
Weight 39.7kg to 40kg
Discharge Voltage 43.5V to 53.5V DC
Charge Voltage 52.5V to 53.5V DC
Recommended Charge and Discharge Current 80A
Maximum Continuous Charge and Discharge Current 100A
Peak Charge and Discharge Current 101A to 120A for 15 minutes, 121A to 200A for 15 seconds
Communication RS485, CAN
Maximum Battery Group Configuration Up to 16 batteries in one group
Working Temperature, Charge 0°C to 50°C
Working Temperature, Discharge -10°C to 50°C
Shelf Temperature -20°C to 45°C
Short Current and Duration <2000A / 1ms
Cooling Type Natural cooling
Breaker Yes
Protective Class Class I
IP Rating IP20
Humidity 5% to 95% RH, no condensation
Altitude Up to 4000m
Certifications TÜV, CE, UL, UN38.3
Design Life 15+ years at 25°C / 77°F
Cycle Life More than 6,000 cycles at 25°C
Reference Standards IEC62619, IEC63056, UL1973, UL9540A, IEC61000-6-2

Manufacturer datasheet. Figures as published by the manufacturer.
