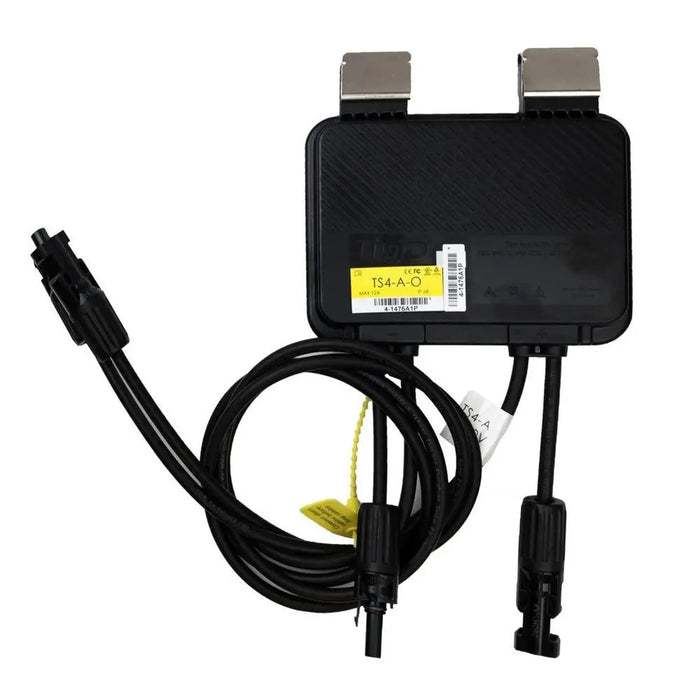

Tigo TS4-A-O solar optimiser with black housing, metal mounting brackets, attached cables, and yellow certification label vis

Solar Panel Optimiser 700W MC4 Compatible | Tigo TS4-A-O

£41.90 £51.82
Skip to product information
Tigo TS4-A-O solar optimiser with black housing, metal mounting brackets, attached cables, and yellow certification label vis
Solar Panel Optimiser 700W MC4 Compatible | Tigo TS4-A-O

Solar Panel Optimiser 700W MC4 Compatible | Tigo TS4-A-O

Vendor
Tigo
SKU
TS4-A-O
Availability
In stock
Weight
0.55 kg

Was£51.82£43.18Save £9.92Save £8.26

£41.90inc VAT £34.92exc VAT

Delivery from £3.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Tigo TS4-A-O is a module-level solar panel optimiser that adds shade optimisation, monitoring and rapid shutdown to panels up to 700W. It attaches to the panel frame or rack and connects in-line with the panel's DC cable, with a 1m cable and MC4 compatible connectors included.

Key features of this solar panel optimiser

  • Module-level optimisation, reduces shading and mismatch losses across the array
  • Module-level monitoring, tracks energy production per panel via the Tigo cloud platform
  • Rapid shutdown, manual or automatic, NEC 2017 and 2020 compliant
  • Power rating, supports PV modules up to 700W
  • Voltage rating, 1500V UL / 1000V IEC
  • Cable and connectors, 1m cable with MC4 compatible connectors included
  • Mounting, snap to frame or rack, no tools required
  • Commissioning, Tigo mobile app for iOS and Android
  • Inverter compatibility, works with any inverter brand

How it works

The TS4-A-O clips onto the panel frame with a snap bracket and wires in-line using the included MC4 connectors, no proprietary inverter needed. Paired with a Tigo TAP and Cloud Connect Advanced (CCA), each unit reports individual panel performance to the Tigo platform, making it easier to spot underperforming panels or shading issues at module level rather than string level. The rapid shutdown function brings roof-level DC voltage down to safe levels when the inverter shuts down or when triggered manually from the app.

Applications

Suited to residential and commercial PV systems affected by partial shading, and to retrofit upgrades where module-level monitoring or rapid shutdown compliance is needed. It also fits new installations where per-panel performance visibility is a requirement.

Installation notes

Fitting should be carried out by a qualified solar installer or electrician. A Tigo TAP and Cloud Connect Advanced (CCA) are needed to enable monitoring and cloud connectivity. All DC connections must be made correctly and waterproofed before the system is energised, following Tigo's installation and commissioning guide.

Technical Specifications 15 rows Show
Operating Temperature Range -40°C to +70°C (-40°F to +158°F)
Outdoor Rating IP68
Maximum Elevation 2000m
Mechanical
Dimensions W=138.4mm, L= 139.7mm, H= 22.9mm
Weight 520g
Electrical
Total Max Input Voltage (Voc @ Lowest Temperature) 80V
Voltage Range 16 - 80V
Maximum Current 15A
Maximum Power 700W
Cable Length (in/out) 0.12/1.2m (standard), 0.62/1.2m (optional)
Connectors MC4, EVO2
Communication Type Wireless
Recommended Fuse Rating 30A

Manufacturer datasheet. Figures as published by the manufacturer.
