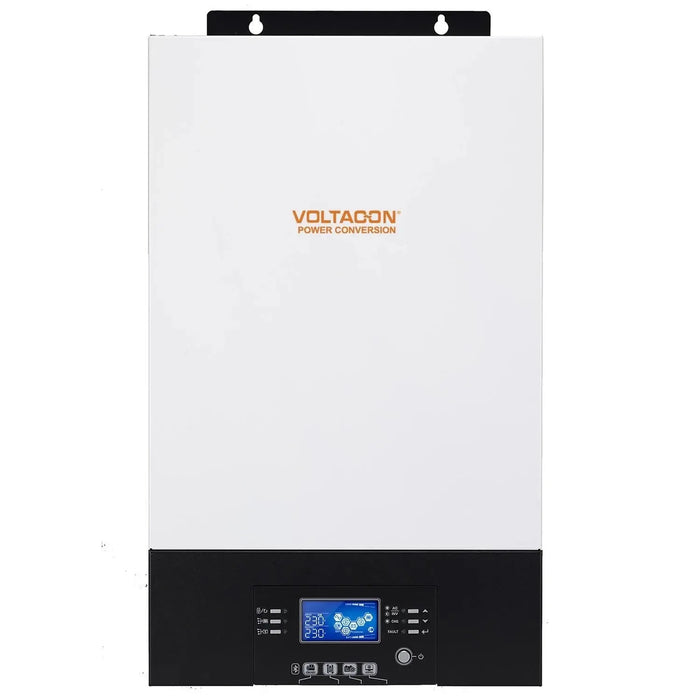

Conversol V5 Super 5kW Off Grid Inverter 48V 140A MPPT
Was£837.90£698.25Save £121.27Save £101.06
£716.63inc VAT £597.19exc VAT
Delivery from £10.00 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
The Conversol V5 Super is a 5kW off-grid solar inverter and battery charger built around a 140A MPPT supercharger. It combines Bluetooth monitoring, a removable LCD control panel, and parallel capability for up to 9 units, making it suited to off-grid homes, farms, workshops, and any installation that might need to scale up later.
Suited to off-grid homes, farms, and workshops that need high solar charging capacity, and to systems that may need to expand later through parallel operation. Also useful where the control panel needs to sit away from the inverter itself, or where the battery bank calls for a higher float charge voltage than standard. AC or PV input priority is configurable via the control module, with grid or generator backup available when solar and battery cannot meet demand.
Must be installed by a qualified electrician or solar installer. Battery systems must comply with BS EN 62619 and local building regulations. Float charge voltage has to be set correctly for the battery chemistry in use, as incorrect charging voltages can damage battery cells. This is not a DIY installation.
| MODEL | Conversol V5 5kVA Off Grid | |
| Rated Power | 5000VA/5000W | |
| INPUT | ||
| Voltage | 230 VAC ± 5% | |
| Selectable Voltage Range | 110-280 VAC | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 10000VA for 5 sec | |
| Efficiency (Peak) | 93% Line mode, 90% Battery mode | |
| Transfer Time | 0 ms | |
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 48 VDC | |
| Floating Charge Voltage | 54 VDC (up to 64VDC) | |
| Overcharge Protection | 66 VDC | |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Power | 4000 W | |
| MPPT Range @ Operating Voltage | 60-115 V | |
| Maximum PV Array Open Circuit Voltage | 145 VDC | |
| Maximum Solar Charge Current | 80 A | |
| Maximum AC Charge Current | 60 A | |
| Maximum Charge Current | 140A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension, D X W X H (mm) | 140 x 300 x 512 | |
| Net Weight (kgs) | 12.2 | |
| OPERATING ENVIRONMENT | ||
| Operating Temperature | 0°C to 55°C | |
| Storage Temperature | -15°C to 60°C | |
| Humidity | 5% to 95% RH (Non-condensing) | |
Manufacturer datasheet. Figures as published by the manufacturer.
